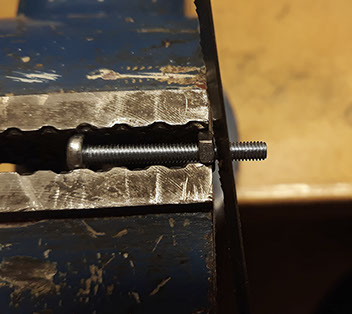

There are quite a few screws on this scanner, with different lengths not always standard length. A good way to cut screws is this way.



- Insert nut within planned length.



- Saw off the screw with a fine-toothed saw.



- Unscrew the nut and clean the threads at the same time, if necessary filing to the end of the screw



Assembly of 3D print parts - click on the desired part

Film‐wheels

Download 3D print parts

HQ ver 2.1 / July 19th

Download 3D print list

HQ ver 2.1 / July 19th

Print instruction resolution, color, Quantity

Rewind wheels

Traction‐stop

Camera mount

FilmGate

Light

Dust removal wheels

Capstan

Cad cut text

Filmcontrol

T-Scann 8 - project page

Super 8 / Regular 8  film scanner

Home

Phototrans-Extra-protection.stl for Filmgate, very small part to print but reduces the minimum light level, good for detection.
