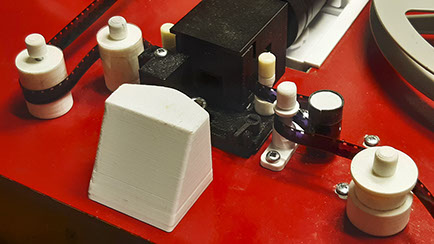

Light
-Just 2 parts simpler, nicer maybe a little better so that scratches on the film are not visible?

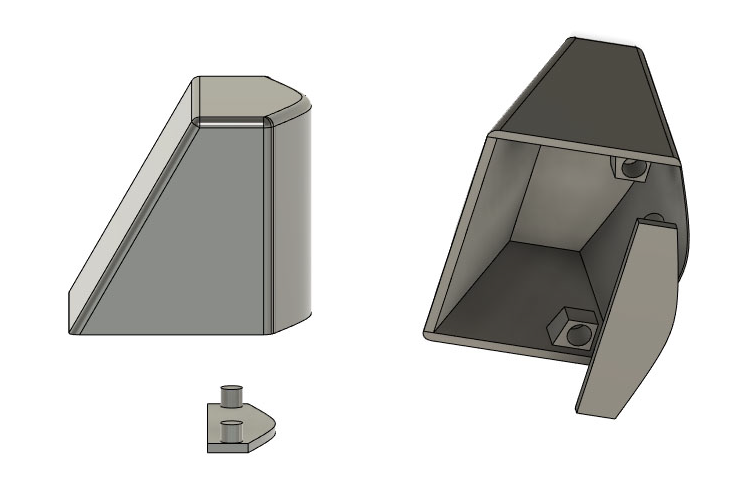

Parts for White led lighting
backlighting‐A.stl
backlighting‐B.stl
Attach this with double-sided tape to the top plate
This thin plastic disc diffuses the light so the light becomes soft and does not highlight any scratches on the film. Must be print with white! PLA

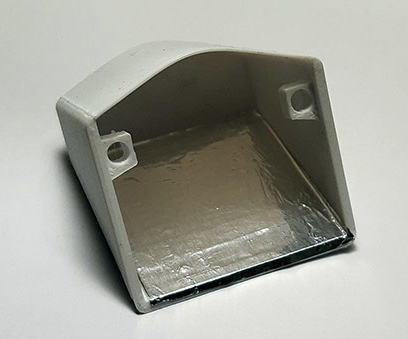

Glue aluminum foil to the back
Before painting the Top plate, apply tape

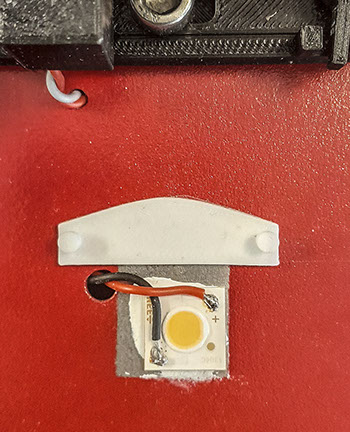

18 x 18 mm for the Cree LED to get the best possible cooling. Cooling paste used for mounting CPUs on computers can be used for assembly
Centerline 225mm
36mm
16mm
Top plate ver 3
Location and dimensions
