T-Scann 8 - project page
Super 8 / Regular 8 film scanner
Here is all the information for making circuit boards.
The easiest way is to order from, for example, https://cart.jlcpcb.com
You can etch yourself or use a cnc router, have used the CNC method myself.
Have done my best to review any errors. This circuit's short design is slightly modified.
This file contains the wiring diagram, component list and more Update aug 8
Update juli 3
It has been shown that the holes for the stepper motor circuits (3 pcs) are a bit too small, it is only to drill up 0.9 or 1 mm
Controll T-Scann 8

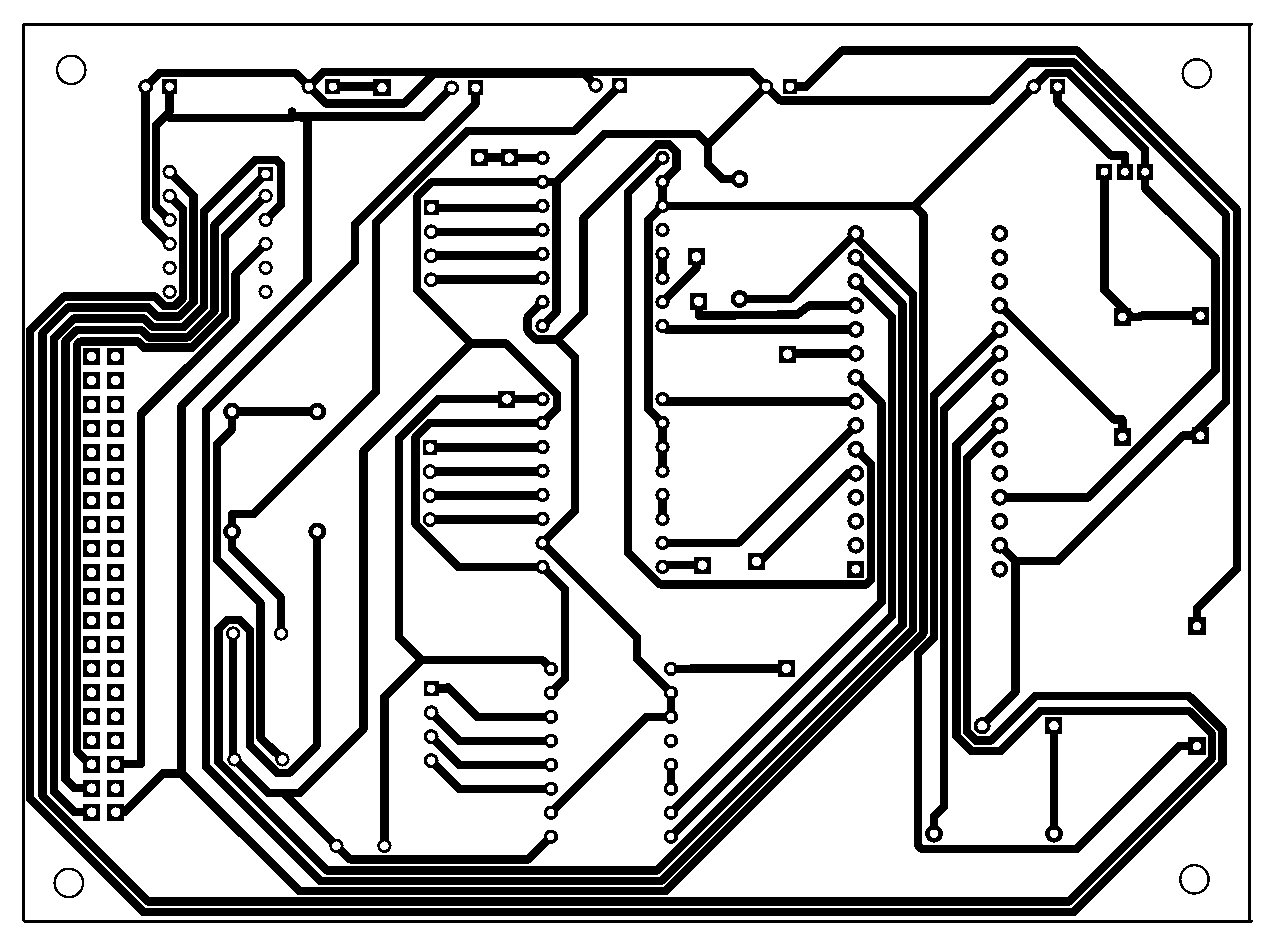

Solder side, actual size 130 x 95mm

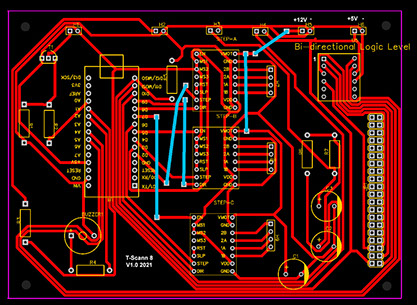

Component Page
It is easy to build Led drives on verobord. if you do not want to make a real circuit board / PCB

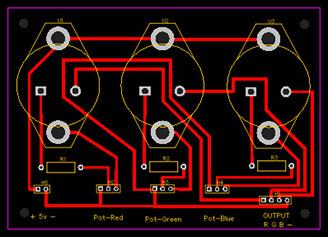

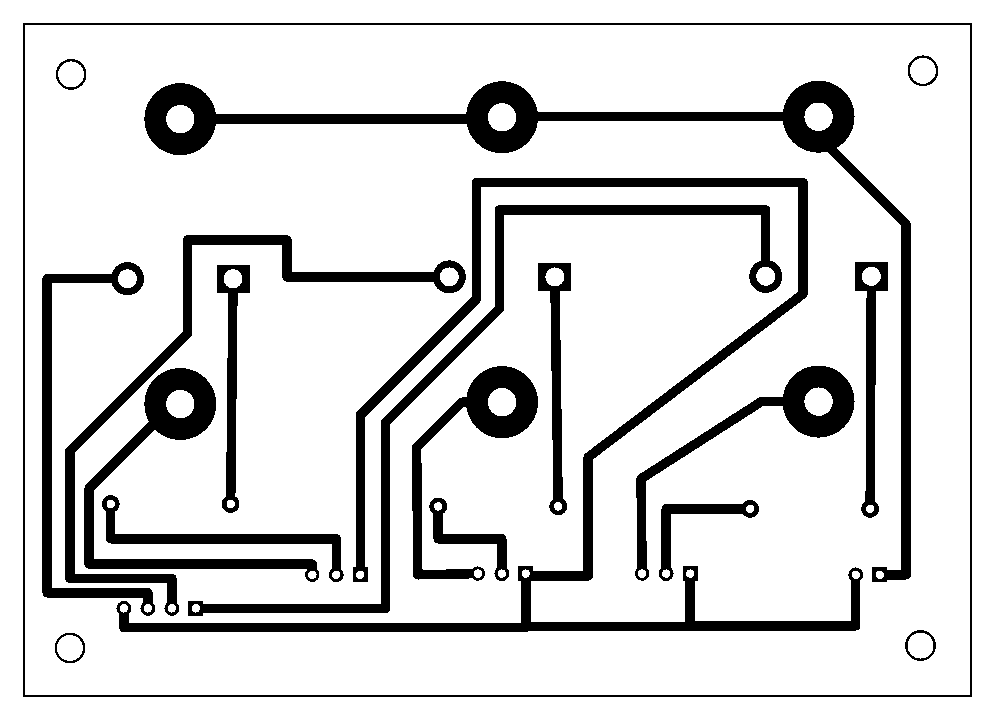

Led driver light source
Update april 10
Etching own circuit board
