T-Scann 8 - project page
Super 8 / Regular 8 film scanner
HQ camera with new better lens!
T-Scann 8 light source changes from RGB LED to WHITE LED, read why on this page

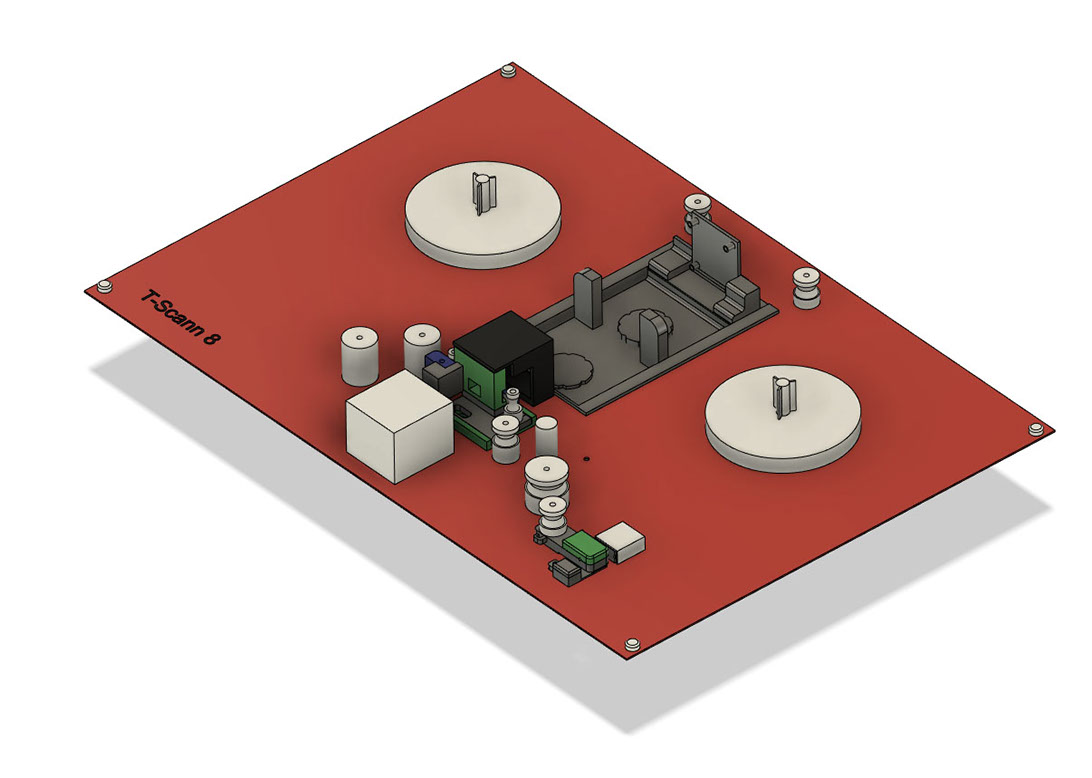

This image differs from the final version lacks lens support among other things.The camera holder is in this picture at the back, it can be pulled 10mm forward and backward

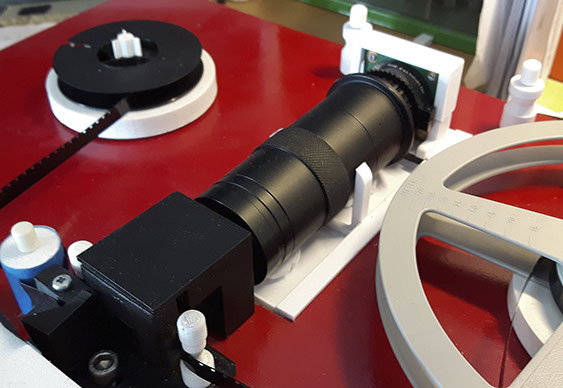

The new microscope lens

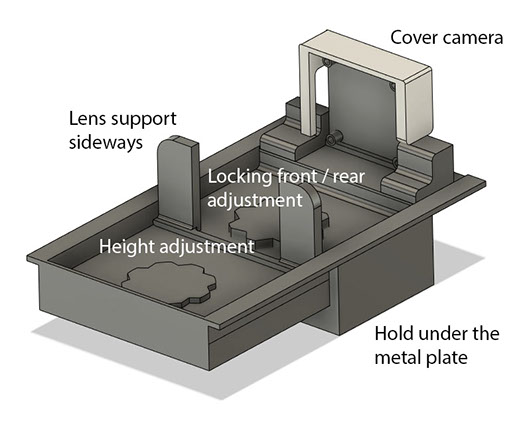

May 2 - Has made some minor changes
- Lins support tighter fit
- rewind wheels higher
- New Cover camera
The existing T-Scann 8 can be modified to make the hole for the camera holder must be made larger and, in addition to replacing the camera holder, 2 rewind wheels and lens tubes.
A problem with the new lens has been found
Chromatic aberration, most easily seen at film perforation hole blue line this optical problem occurs more or less on all lenses.
Fortunately, it is not so difficult to correct in Davinci Resolve with "Splitter Combiner Nodes" I will explain it in the next video. Search it on YouTube until I made a video about the feature.
