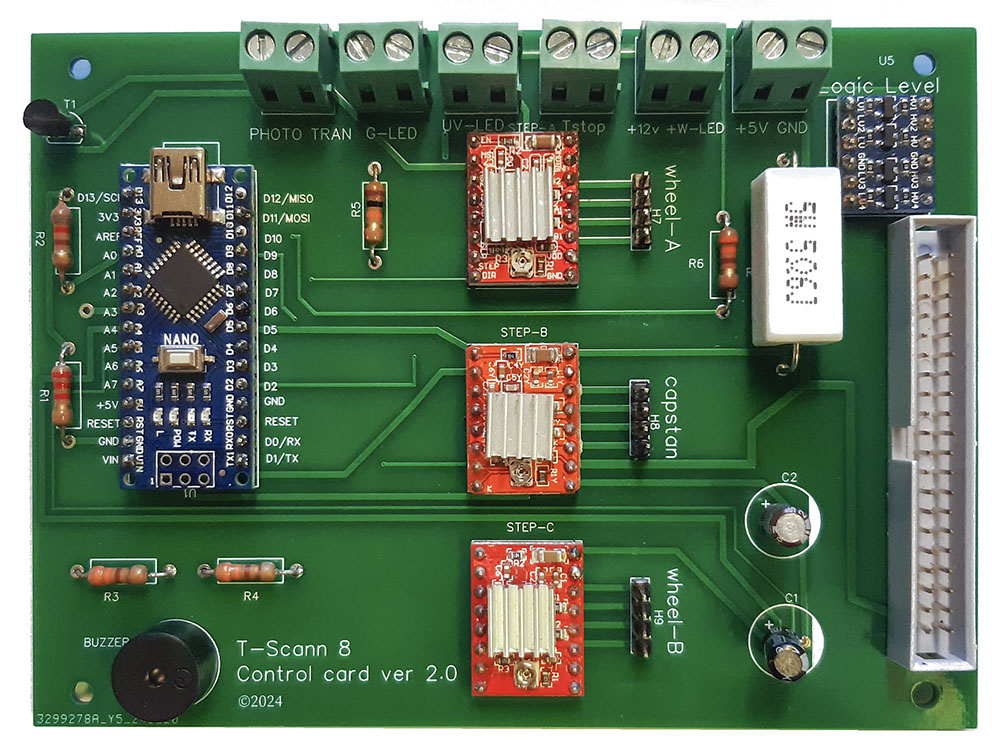

Facade Edge

PhotoTransistor

Facade Edge

Yellow Led

Facade Edge

UV-Led

Cree 1304

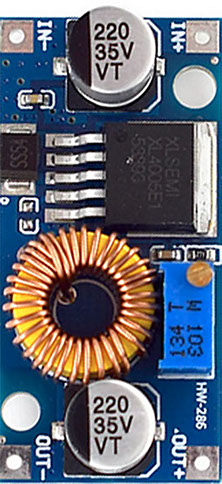

XL4005

------Very important set to 5.1 V------

On delivery, it is set to a higher voltage.

Raspberry Pi and Arduino will be destroyed otherwise!

12 volts from the on/off switch

-

+

To Traction stop

Flat cable for Raspberry Pi

Label cables! particularly important 5V and 12V

absolutely must not be mixed up!

Suitable cables see purchase materials

Screw the terminal screw max left, before plugging in the cable.

Cable to stepper motor red downwards, should it go the wrong way just turn the connector
