T-Scann 8 - project page

Super 8 / Regular 8  film scanner

Controll T-Scann 8

Here is all the information for making circuit boards.

The easiest way is to order from, for example, https://cart.jlcpcb.com



You can etch yourself or use a cnc router, have used the CNC method myself.



This file contains the wiring diagram, component list and more

Ver 2.01

Download Zip file circuit diagram Controll card etc.

This is file to create PCB save it on your computer

and upload the zip file to JLCPCB or convert it to CNC file

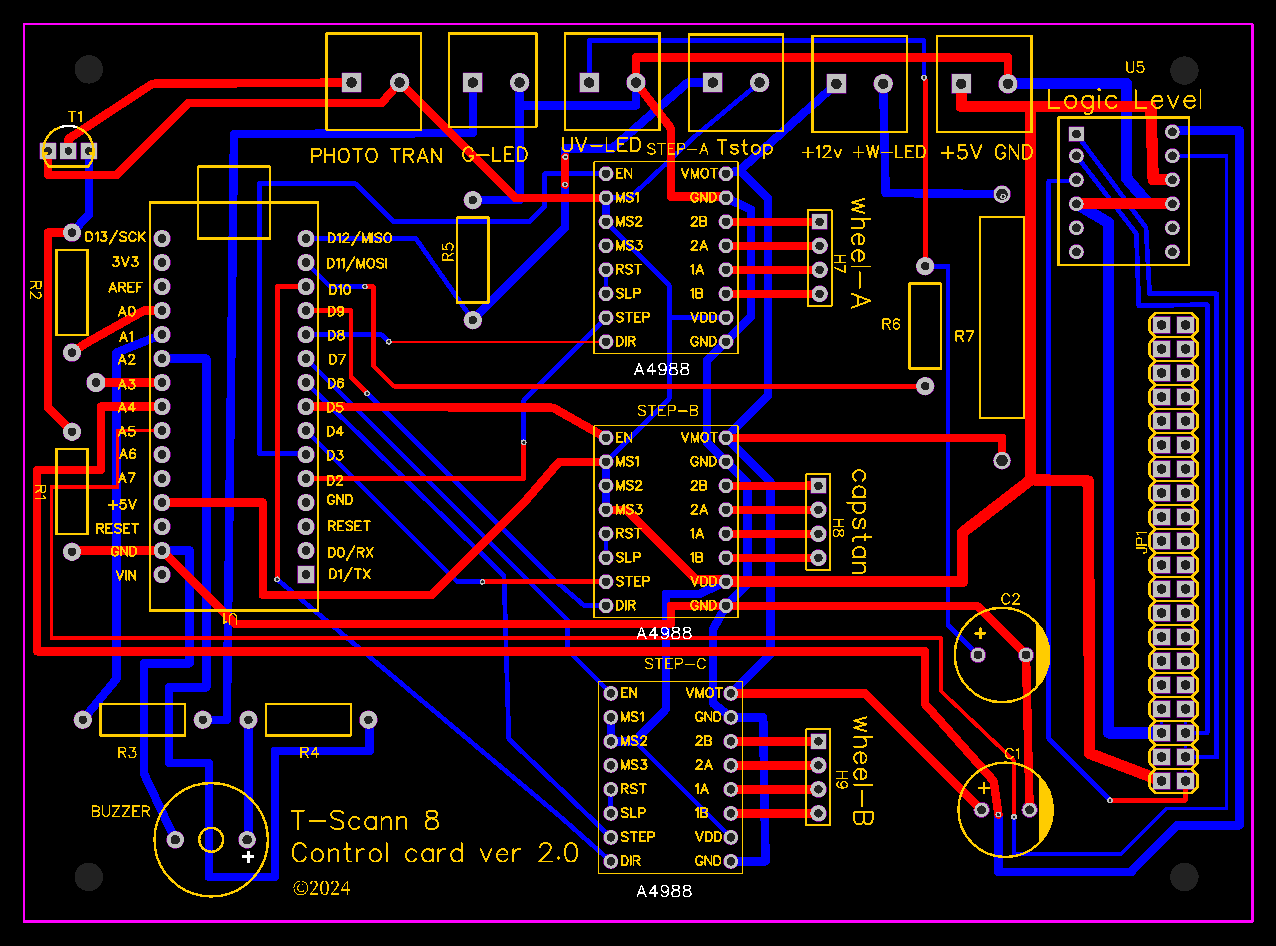

Solder side, actual size 130 x 95mm

Component Page

Download Zip file v1.1 gerber files to make circuit  Controll cardboard

It has been shown that the holes for the stepper motor circuits (3 pcs) are a bit too small, it is only to drill up 0.9 or 1 mm
