Controll T-Scann 8
Here is all the information for making circuit boards.
The easiest way is to order from, for example, https://cart.jlcpcb.com
You can etch yourself or use a cnc router, have used the CNC method myself.
This file contains the wiring diagram, component list and more
Ver 2.01
This is file to create PCB save it on your computer
and upload the zip file to JLCPCB or convert it to CNC file
Solder side, actual size 130 x 95mm

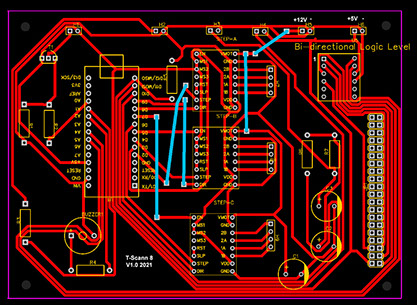

Component Page

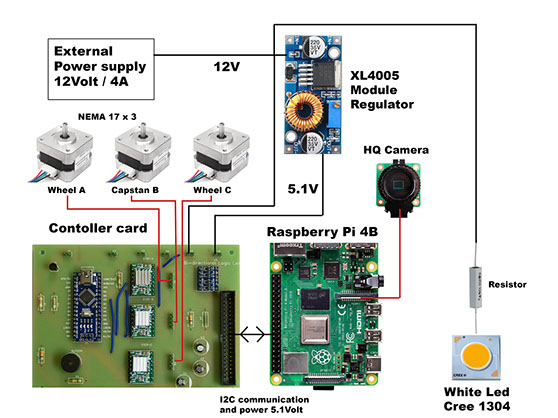

Power to Raspberry PI, if you see yellow lightning symbol on the right. Try this
It has been shown that the holes for the stepper motor circuits (3 pcs) are a bit too small, it is only to drill up 0.9 or 1 mm
Controll T-Scann 8
-Click on the picture to enlarge-
NOTE - on controller card remove resistor R7, and jumper over it with a cable, otherwise the UV led gets too little current
5.6 ohm
5Watt wire wound / ceramic
