T-Scann 8 - project page
Super 8 / Regular 8 film scanner
It is very practical to be able to open the scanner at the front during construction and then for possible service and updating.
On the right side of the picture you can see a red LED indicating that power is on to the scanner.
On the back you can see the socket for HDMI / USB / switch / DC-in connectors
(back‐panel‐contacts.stl)
There are hinges on the back, there are many different models, choose something suitable.
Coloring of the plate and the box can be chosen according to your own taste, but the plate should be in some light color so you see that it is clean

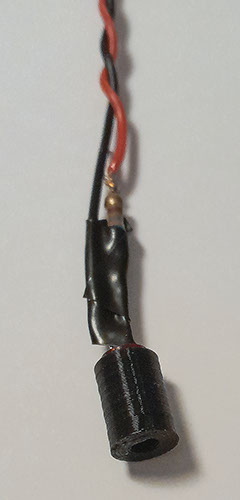

In the front of the box there is an 8 mm hole for led pwer on. Insert into the hole with or without glue.
Printed in the same color as the box
Glue and screw (countersunk screws) together the box, fill over screws then paint everything. The bottom plate is painted white on the top
-12V
+12V
560ohm / 0,25w
Connect to on/off connector on rear panel
