T-Scann 8 - project page

Super 8 / Regular 8  film scanner

Home

This project started in 2015,

with an idea that it would probably be possible to build a Super 8 scanner with a USB microscope. It worked but I was not happy with the image quality. Then I tried with industrial camera with microscope lens got better but not good. Found a scanner built on Youtube that used Rasberry PI camera and some mobile close-up lens, not good he still had the original lens + mobile lens. Eventually I realized that if I remove the original lens and then place the lens that came with the industrial camera in front of the Raspberry PI camera, I was happy with it. As far as I know, I am alone in this solution.



Now I could start my project to build a Super 8 / Regular 8 scanner. I had Arduino (limited) and electronics knowledge but not Python (Raspberry PI). I did not own a 3D printer, I did not know then how to make my parts, but I realized it later. So got to teach me CAD for 3D printing as well.



I have spent a lot of time learning to control stepper motors etc., and waiting for small packages from China has also taken a lot of time.

Because I have various other interests that have taken a lot of time now and then. In the summer of 2019, my scanner worked quite well.



Now I'm pretty happy, but will make small improvements that I will share with you later on this page. / Torulf Holmström Sweden

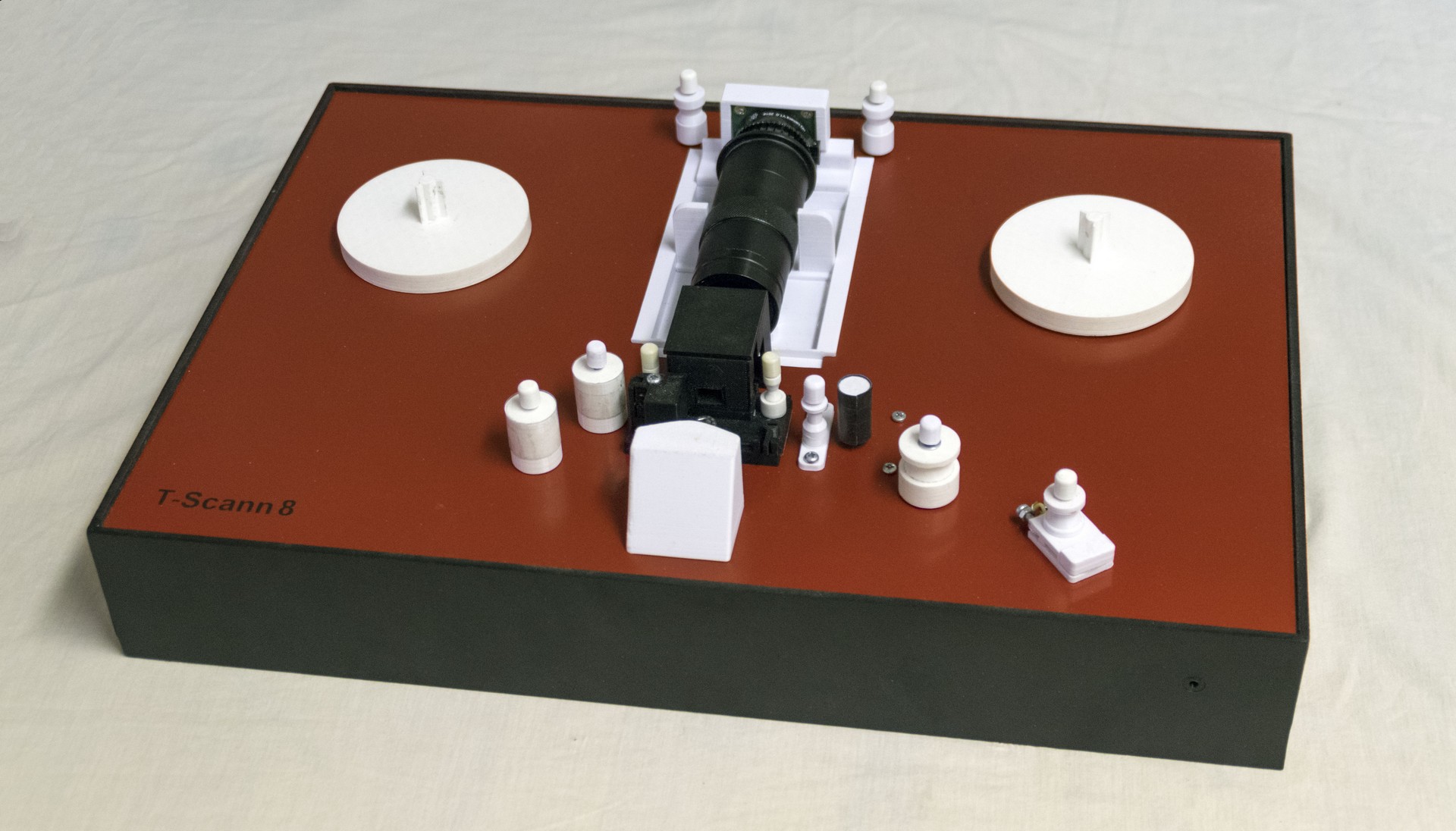

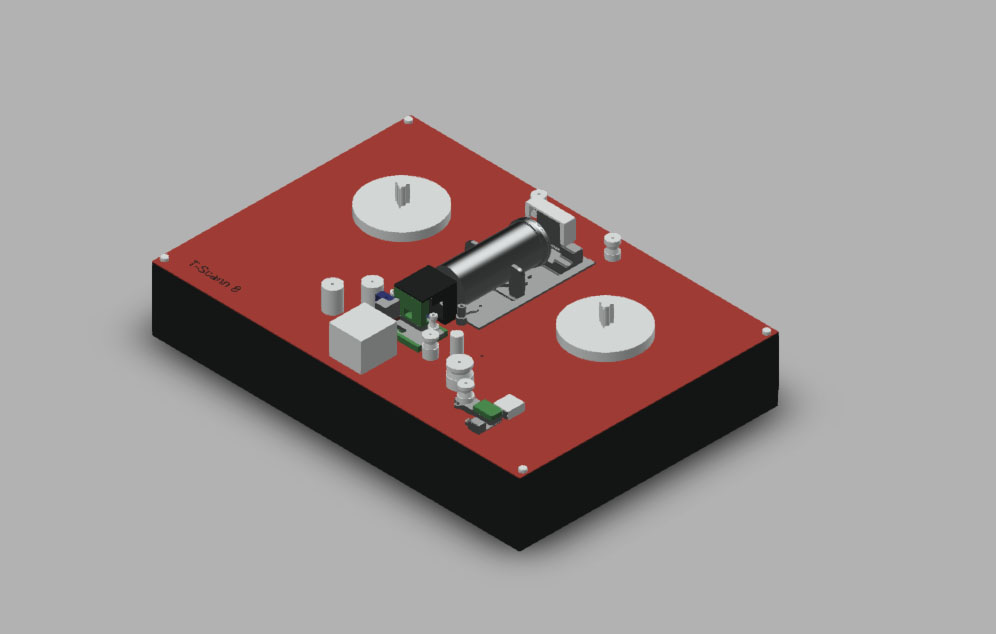

Watch T-Scann 8 in 3D, click on image opens on new page

Creative Commons License
This work is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License.

YouTube video showing how T-Scann 8 works can be found here.



Questions / comments? email me brev@torulf.com

Feel free to write "T-Scann8" on the subject

Sep 1

New better Arduino ver 1.35

correction important program line

Software



Capstan wheels - new smaller, better

3D print parts



HQ camera holding part, updates

and extra support lens.

HQ camera update



Important when using the HQ camera

-Raspberry PI uses interface-

here
